FX::TnFX3DGraph Class Reference
[2D and 3D Graphing]

#include <TnFXGraph.h>

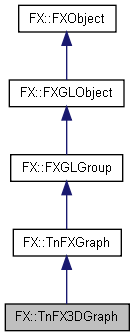

Inheritance diagram for FX::TnFX3DGraph:

[legend]

Detailed Description

Renders a 3D graph.

The graphs can come in one of two formats: quick and pretty. The quick scales up to 500,000 points on typical 3D hardware without a problem whereas the pretty scales up to 100,000 on typical 3D hardware. As rendering all the points can take too long to allow smooth animation during user manipulation, the graph offers a turbo mode which quarters the number of points being plotted during animation. See FX::FXGLViewer::setTurbo().

Pretty mode can be enabled by specifying the option STYLE_SURFACE|SHADING_SMOOTH on the FX::FXGLVertices underlying the item being rendered. You may also want to set up a specular light as well as a colour generation function.

Public Types

typedef void(* ExpandFunc )(QMemArray< FXVec3f > &out, const QMemArray< FXVec2f > &in)

typedef void(* ReduceFunc )(QMemArray< FXVec3f > &out, const QMemArray< FXVec3f > &in)

enum { ID_LAST }

Public Member Functions

TnFX3DGraph ()

TnFX3DGraph (const QMemArray< FXVec2f > *data, ExpandFunc expand=Expand)

TnFX3DGraph (const QMemArray< FXVec3f > *data, ReduceFunc reduce=ReduceZ)

FXGLVertices * setItemDetails (FXuint item, const FXString &title, const FXGLColor &colour, FXfloat pointsize=4.0f, FXfloat linesize=2.0f)

FXGLVertices * setItemData (FXuint item, const FXVec2f *data, FXuint elements, ExpandFunc expand=Expand)

FXGLVertices * setItemData (FXuint item, const QMemArray< FXVec2f > *data, ExpandFunc expand=Expand)

FXGLVertices * setItemData (FXuint item, const FXVec3f *data, FXuint elements, ReduceFunc reduce=ReduceZ)

FXGLVertices * setItemData (FXuint item, const QMemArray< FXVec3f > *data, ReduceFunc reduce=ReduceZ)

FXGLVertices * itemChanged (FXuint item)

virtual void bounds (FXRangef &box)

virtual void draw (FXGLViewer *viewer)

virtual void hit (FXGLViewer *viewer)

FXGLObjectList & getList ()

virtual FXGLObject * copy ()

virtual FXGLObject * identify (FXuint *path)

virtual FXbool canDrag () const

virtual FXbool drag (FXGLViewer *viewer, FXint fx, FXint fy, FXint tx, FXint ty)

FXint no () const

FXGLObject * child (FXint pos) const

void insert (FXint pos, FXGLObject *obj)

void prepend (FXGLObject *obj)

void append (FXGLObject *obj)

void replace (FXint pos, FXGLObject *obj)

void remove (FXGLObject *obj)

void erase (FXint pos)

void clear ()

virtual void save (FXStream &store) const

virtual void load (FXStream &store)

virtual FXbool canDelete () const

virtual long onDefault (FXObject *, FXSelector, void *)

const FXchar * getClassName () const

bool isMemberOf (const FXMetaClass *metaclass) const

virtual long tryHandle (FXObject *sender, FXSelector sel, void *ptr)

QTransString tr (const char *text, const char *hint=0)

virtual void * getPythonObject () const

virtual void decouplePythonObject () const

Static Public Member Functions

template<FXint zval>

static void Expand (QMemArray< FXVec3f > &out, const QMemArray< FXVec2f > &in)

static void Expand (QMemArray< FXVec3f > &out, const QMemArray< FXVec2f > &in)

template<int offset, int stepe, int stepm>

static void ReduceE (QMemArray< FXVec3f > &out, const QMemArray< FXVec3f > &in)

template<int yinc, int offset, int step>

static void ReduceE2x (QMemArray< FXVec3f > &out, const QMemArray< FXVec3f > &in)

template<int xinc, int offset, int step>

static void ReduceE2y (QMemArray< FXVec3f > &out, const QMemArray< FXVec3f > &in)

static void ReduceZ (QMemArray< FXVec3f > &out, const QMemArray< FXVec3f > &in)

Protected Attributes

QPtrVector< TnFXGraphItem > * items

FXGLObjectList list

Member Typedef Documentation

typedef void(* FX::TnFXGraph::ExpandFunc)(QMemArray< FXVec3f > &out, const QMemArray< FXVec2f > &in) [inherited]

A function translating a 2d array into a 3d array.

typedef void(* FX::TnFXGraph::ReduceFunc)(QMemArray< FXVec3f > &out, const QMemArray< FXVec3f > &in) [inherited]

A function translating a 3d array into a 2d array.

Constructor & Destructor Documentation

FX::TnFX3DGraph::TnFX3DGraph ( )

Constructs an instance.

Member Function Documentation

FXGLVertices* FX::TnFXGraph::setItemDetails	(	FXuint	item,
		const FXString &	title,
		const FXGLColor &	colour,
		FXfloat	pointsize = `4.0f`,
		FXfloat	linesize = `2.0f`
	)			`[inherited]`

Sets item title and colour.

FXGLVertices* FX::TnFXGraph::setItemData	(	FXuint	item,
		const FXVec2f *	data,
		FXuint	elements,
		ExpandFunc	expand = `Expand`
	)			`[inherited]`

Sets the data to be used, with zero unsetting.

FXGLVertices* FX::TnFXGraph::setItemData	(	FXuint	item,
		const QMemArray< FXVec2f > *	data,
		ExpandFunc	expand = `Expand`
	)			`[inherited]`

Sets the data to be used, with zero unsetting. Automatically fetches the length thereafter.

FXGLVertices* FX::TnFXGraph::setItemData	(	FXuint	item,
		const FXVec3f *	data,
		FXuint	elements,
		ReduceFunc	reduce = `ReduceZ`
	)			`[inherited]`

Sets the data to be used, with zero unsetting.

FXGLVertices* FX::TnFXGraph::setItemData	(	FXuint	item,
		const QMemArray< FXVec3f > *	data,
		ReduceFunc	reduce = `ReduceZ`
	)			`[inherited]`

Sets the data to be used, with zero unsetting. Automatically fetches the length thereafter.

FXGLVertices* FX::TnFXGraph::itemChanged ( FXuint item ) [inherited]

Indicates that an item's data should be recalculated.

virtual void FX::TnFXGraph::bounds ( FXRangef & box ) [virtual, inherited]

Return bounding box.

Reimplemented from FX::FXGLGroup.

Reimplemented in FX::TnFX2DGraph.

virtual void FX::TnFXGraph::draw ( FXGLViewer * viewer ) [virtual, inherited]

Draw into viewer.

Reimplemented from FX::FXGLGroup.

Reimplemented in FX::TnFX2DGraph.

virtual void FX::TnFXGraph::hit ( FXGLViewer * viewer ) [virtual, inherited]

Hit in viewer.

Reimplemented from FX::FXGLGroup.

Reimplemented in FX::TnFX2DGraph.

template<FXint zval>

static void FX::TnFXGraph::Expand	(	QMemArray< FXVec3f > &	out,
		const QMemArray< FXVec2f > &	in
	)			`[inline, static, inherited]`

Expands a 2d array into a 3d array by setting of Z.

References FX::QMemArray< type >::count(), and FX::QMemArray< type >::resize().

static void FX::TnFXGraph::Expand	(	QMemArray< FXVec3f > &	out,
		const QMemArray< FXVec2f > &	in
	)			`[inline, static, inherited]`

Expands a 2d array into a 3d array by setting of Z to zero.

References FX::QMemArray< type >::count(), and FX::QMemArray< type >::resize().

template<int offset, int stepe, int stepm>

static void FX::TnFXGraph::ReduceE	(	QMemArray< FXVec3f > &	out,
		const QMemArray< FXVec3f > &	in
	)			`[inline, static, inherited]`

Translates a 3d array into a 2d array by elimination of a coordinate, stepping stepe at the end and stepm in the middle.

References FX::QMemArray< type >::count(), FX::QMemArray< type >::data(), and FX::QMemArray< type >::resize().

template<int yinc, int offset, int step>

static void FX::TnFXGraph::ReduceE2x	(	QMemArray< FXVec3f > &	out,
		const QMemArray< FXVec3f > &	in
	)			`[inline, static, inherited]`

Translates a 3d array into a 2d array by elimination of two coordinates.

References FX::QMemArray< type >::count(), FX::QMemArray< type >::data(), and FX::QMemArray< type >::resize().

template<int xinc, int offset, int step>

static void FX::TnFXGraph::ReduceE2y	(	QMemArray< FXVec3f > &	out,
		const QMemArray< FXVec3f > &	in
	)			`[inline, static, inherited]`

Translates a 3d array into a 2d array by elimination of two coordinates.

References FX::QMemArray< type >::count(), FX::QMemArray< type >::data(), and FX::QMemArray< type >::resize().

static void FX::TnFXGraph::ReduceZ	(	QMemArray< FXVec3f > &	out,
		const QMemArray< FXVec3f > &	in
	)			`[inline, static, inherited]`

Translates a 3d array into a 2d array by division of Z.

References FX::QMemArray< type >::count(), and FX::QMemArray< type >::resize().

FXGLObjectList& FX::FXGLGroup::getList ( ) [inline, inherited]

Return list of childern.

virtual FXGLObject* FX::FXGLGroup::copy ( ) [virtual, inherited]

Copy this object.

Reimplemented from FX::FXGLObject.

virtual FXGLObject* FX::FXGLGroup::identify ( FXuint * path ) [virtual, inherited]

Identify object by means of path.

Reimplemented from FX::FXGLObject.

virtual FXbool FX::FXGLGroup::canDrag ( ) const [virtual, inherited]

Return TRUE if group can be dragged.

Reimplemented from FX::FXGLObject.

virtual FXbool FX::FXGLGroup::drag	(	FXGLViewer *	viewer,
		FXint	fx,
		FXint	fy,
		FXint	tx,
		FXint	ty
	)			`[virtual, inherited]`

Drag group object.

Reimplemented from FX::FXGLObject.

FXint FX::FXGLGroup::no ( ) const [inline, inherited]

Return number of children.

FXGLObject* FX::FXGLGroup::child ( FXint pos ) const [inline, inherited]

Child at position.

void FX::FXGLGroup::insert	(	FXint	pos,
		FXGLObject *	obj
	)			`[inline, inherited]`

Insert child object at given position.

void FX::FXGLGroup::prepend ( FXGLObject * obj ) [inline, inherited]

Prepend child object.

void FX::FXGLGroup::append ( FXGLObject * obj ) [inline, inherited]

Append child object.

void FX::FXGLGroup::replace	(	FXint	pos,
		FXGLObject *	obj
	)			`[inline, inherited]`

Replace child object.

void FX::FXGLGroup::remove ( FXGLObject * obj ) [inline, inherited]

Remove child object.

void FX::FXGLGroup::erase ( FXint pos ) [inline, inherited]

Remove child object at given position.

void FX::FXGLGroup::clear ( ) [inline, inherited]

Remove all children.

virtual void FX::FXGLGroup::save ( FXStream & store ) const [virtual, inherited]

Stream save and load.

Reimplemented from FX::FXObject.

virtual void FX::FXGLGroup::load ( FXStream & store ) [virtual, inherited]

Load object from stream.

Reimplemented from FX::FXObject.

virtual FXbool FX::FXGLObject::canDelete ( ) const [virtual, inherited]

Return true if this object can be deleted from the scene.

Reimplemented in FX::FXGLShape.

virtual long FX::FXObject::onDefault	(	FXObject *	,
		FXSelector	,
		void *
	)			`[virtual, inherited]`

Called for unhandled messages.

Reimplemented in FX::FXDelegator, FX::FXGLViewer, FX::FXMDIChild, and FX::FXMDIClient.

const FXchar* FX::FXObject::getClassName ( ) const [inherited]

Get class name of some object.

bool FX::FXObject::isMemberOf ( const FXMetaClass * metaclass ) const [inherited]

Check if object is member of metaclass.

virtual long FX::FXObject::tryHandle	(	FXObject *	sender,
		FXSelector	sel,
		void *	ptr
	)			`[virtual, inherited]`

Try handle message safely.

QTransString FX::FXObject::tr	(	const char *	text,
		const char *	hint = `0`
	)			`[inherited]`

Returns a human translated version of the text to the locale language (warning: uses a virtual method call, so can't use before construction)

virtual void* FX::FXObject::getPythonObject ( ) const [inline, virtual, inherited]

Returns the python object representing this instance (if created in python).

virtual void FX::FXObject::decouplePythonObject ( ) const [inline, virtual, inherited]

Causes decoupling of python object from this object (deletes self).

The documentation for this class was generated from the following file:

TnFXGraph.h


Public Types
typedef void(*	ExpandFunc )(QMemArray< FXVec3f > &out, const QMemArray< FXVec2f > &in)
typedef void(*	ReduceFunc )(QMemArray< FXVec3f > &out, const QMemArray< FXVec3f > &in)
enum	{ ID_LAST }
Public Member Functions
	TnFX3DGraph ()
	TnFX3DGraph (const QMemArray< FXVec2f > *data, ExpandFunc expand=Expand)
	TnFX3DGraph (const QMemArray< FXVec3f > *data, ReduceFunc reduce=ReduceZ)
FXGLVertices *	setItemDetails (FXuint item, const FXString &title, const FXGLColor &colour, FXfloat pointsize=4.0f, FXfloat linesize=2.0f)
FXGLVertices *	setItemData (FXuint item, const FXVec2f *data, FXuint elements, ExpandFunc expand=Expand)
FXGLVertices *	setItemData (FXuint item, const QMemArray< FXVec2f > *data, ExpandFunc expand=Expand)
FXGLVertices *	setItemData (FXuint item, const FXVec3f *data, FXuint elements, ReduceFunc reduce=ReduceZ)
FXGLVertices *	setItemData (FXuint item, const QMemArray< FXVec3f > *data, ReduceFunc reduce=ReduceZ)
FXGLVertices *	itemChanged (FXuint item)
virtual void	bounds (FXRangef &box)
virtual void	draw (FXGLViewer *viewer)
virtual void	hit (FXGLViewer *viewer)
FXGLObjectList &	getList ()
virtual FXGLObject *	copy ()
virtual FXGLObject *	identify (FXuint *path)
virtual FXbool	canDrag () const
virtual FXbool	drag (FXGLViewer *viewer, FXint fx, FXint fy, FXint tx, FXint ty)
FXint	no () const
FXGLObject *	child (FXint pos) const
void	insert (FXint pos, FXGLObject *obj)
void	prepend (FXGLObject *obj)
void	append (FXGLObject *obj)
void	replace (FXint pos, FXGLObject *obj)
void	remove (FXGLObject *obj)
void	erase (FXint pos)
void	clear ()
virtual void	save (FXStream &store) const
virtual void	load (FXStream &store)
virtual FXbool	canDelete () const
virtual long	onDefault (FXObject , FXSelector, void )
const FXchar *	getClassName () const
bool	isMemberOf (const FXMetaClass *metaclass) const
virtual long	tryHandle (FXObject sender, FXSelector sel, void ptr)
QTransString	tr (const char text, const char hint=0)
virtual void *	getPythonObject () const
virtual void	decouplePythonObject () const
Static Public Member Functions
template<FXint zval>
static void	Expand (QMemArray< FXVec3f > &out, const QMemArray< FXVec2f > &in)
static void	Expand (QMemArray< FXVec3f > &out, const QMemArray< FXVec2f > &in)
template<int offset, int stepe, int stepm>
static void	ReduceE (QMemArray< FXVec3f > &out, const QMemArray< FXVec3f > &in)
template<int yinc, int offset, int step>
static void	ReduceE2x (QMemArray< FXVec3f > &out, const QMemArray< FXVec3f > &in)
template<int xinc, int offset, int step>
static void	ReduceE2y (QMemArray< FXVec3f > &out, const QMemArray< FXVec3f > &in)
static void	ReduceZ (QMemArray< FXVec3f > &out, const QMemArray< FXVec3f > &in)
Protected Attributes
QPtrVector< TnFXGraphItem > *	items
FXGLObjectList	list

FX::TnFX3DGraph Class Reference [2D and 3D Graphing]

Detailed Description

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

FX::TnFX3DGraph Class Reference
[2D and 3D Graphing]
