#include <QIODevice.h>

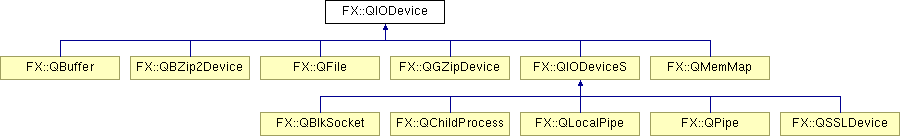

Inheritance diagram for FX::QIODevice:
This is the base class for all TnFOX byte i/o classes. It provides a universal API for accessing all subclasses and while API compatible with Qt's QIODevice, it provides enhanced functionality.
CR/LF translation facilities are provided by applyCRLF() and removeCRLF(). These were broken first time I wrote them and I find it surprising how difficult it actually is to implement this 100% correctly. They are public as GUI code will want to apply CR/LF before exporting text to the clipboard and remove it when importing. The same functions can also perform Unicode conversions.
Data destruction is performed by shredData(). This uses an algorithm which thoroughly shreds the specified region, ensuring that the data cannot be recovered by any known process. The algorithm used involves XORing the existing data with pseudo-random data seeded with data from FX::Secure::Randomness, then writing zeros over the lot. All TnFOX file i/o devices call this on truncated data when IO_ShredTruncate is specified in the mode. If you wish to destroy an existing file, open it with IO_ShredTruncate, call truncate(0) and close before deleting.
QIODevice is extremely straightforward, so I won't bother explaining any more. What I will say is that there are two types of i/o device in TnFOX: (a) file and (b) synchronous. File i/o devices (eg; FX::FXFile, FX::QBuffer, FX::QMemMap, FX::QGZipDevice etc) let you perform reads and writes on a patch of data and thus they are interchangeable. Synchronous i/o devices (eg; FX::QPipe, FX::QBlkSocket, FX::QLocalPipe etc) which inherit off FX::QIODeviceS imply the use of two threads to use them because data reads in all of them wait for data to be written by the other side. Things like at() have no meaning and size() returns how much data is waiting to be read. Synchronous i/o devices are the foundation stone of Inter Process Communication (IPC) and are used mostly with FX::FXIPCMsg.
All i/o devices in TnFOX are thread-safe and can be used by multiple threads simultaneously though obviously there is only one current file pointer. You will have to synchronise that on your own. Furthermore, full access to the host security mechanism is provided by all i/o devices via permissions().
Definition at line 127 of file QIODevice.h.
Public Types | |
| typedef FXfval | Offset |
| Default | |
| Unix | |
| MacOS | |
| MSDOS | |
| NoTranslation | |
| UTF8 | |
| UTF16 | |
| UTF16LE | |
| UTF32 | |
| UTF32LE | |
| enum | CRLFType { Default, Unix, MacOS, MSDOS } |
| enum | UnicodeType { NoTranslation, UTF8, UTF16, UTF16LE, UTF32, UTF32LE } |
Public Member Functions | |
| QIODevice () | |
| virtual | ~QIODevice () |
| FXuint | flags () const |
| FXuint | mode () const |
| FXuint | state () const |
| CRLFType | crlfFormat () const |
| void | setCRLFFormat (CRLFType type) |
| UnicodeType | unicodeTranslation () const |
| void | setUnicodeTranslation (UnicodeType type) |
| bool | isBuffered () const |
| bool | isRaw () const |
| bool | isTranslated () const |
| bool | isUTF16Translated () const |
| bool | isUTF32Translated () const |
| bool | isReadable () const |
| bool | isWriteable () const |
| bool | isWritable () const |
| bool | isReadWrite () const |
| bool | isClosed () const |
| bool | isInactive () const |
| bool | isOpen () const |
| virtual bool | isSynchronous () const |
| virtual bool | open (FXuint mode)=0 |
| virtual void | close ()=0 |
| virtual void | flush ()=0 |
| virtual FXfval | size () const =0 |
| virtual void | truncate (FXfval size)=0 |
| virtual FXfval | at () const |
| virtual bool | at (FXfval newpos) |
| virtual bool | atEnd () const |
| virtual const FXACL & | permissions () const |
| virtual void | setPermissions (const FXACL &) |
| virtual FXuval | readBlock (char *data, FXuval maxlen)=0 |
| FXuval | readBlock (FXuchar *data, FXuval maxlen) |
| virtual FXuval | writeBlock (const char *data, FXuval maxlen)=0 |
| FXuval | writeBlock (const FXuchar *data, FXuval maxlen) |
| virtual FXuval | readLine (char *data, FXuval maxlen) |
| virtual FXuval | readBlockFrom (char *data, FXuval maxlen, FXfval pos)=0 |
| FXuval | readBlockFrom (FXuchar *data, FXuval maxlen, FXfval pos) |
| virtual FXuval | writeBlockTo (FXfval pos, const char *data, FXuval maxlen)=0 |
| FXuval | writeBlockTo (FXfval pos, const FXuchar *data, FXuval maxlen) |
| virtual int | getch () |
| virtual int | putch (int c) |
| virtual int | ungetch (int c)=0 |
| FXfval | shredData (FXfval offset, FXfval len=(FXfval)-1) |
Static Public Member Functions | |
| static UnicodeType | determineUnicodeType (FXuchar *data, FXuval len) throw () |
| static FXuval | applyCRLF (FXuchar *FXRESTRICT output, const FXuchar *FXRESTRICT input, FXuval outputlen, FXuval &inputlen, CRLFType crlftype=Default, UnicodeType utftype=NoTranslation) |
| static FXuval | removeCRLF (FXuchar *FXRESTRICT output, const FXuchar *FXRESTRICT input, FXuval outputlen, FXuval &inputlen, UnicodeType utftype=NoTranslation) |
Protected Member Functions | |
| QIODevice (const QIODevice &o) | |
| QIODevice & | operator= (const QIODevice &o) |
| void | setFlags (int f) |
| void | setMode (int m) |
| void | setState (int s) |
Protected Attributes | |
| FXfval | ioIndex |
Friends | |
| FXAPI FXStream & | operator<< (FXStream &s, QIODevice &i) |
| FXAPI FXStream & | operator>> (FXStream &s, QIODevice &i) |
v1.4.7
