FX::FXIPCMsg Struct Reference
[Inter Process Communication & Data Transport]

#include <FXIPC.h>

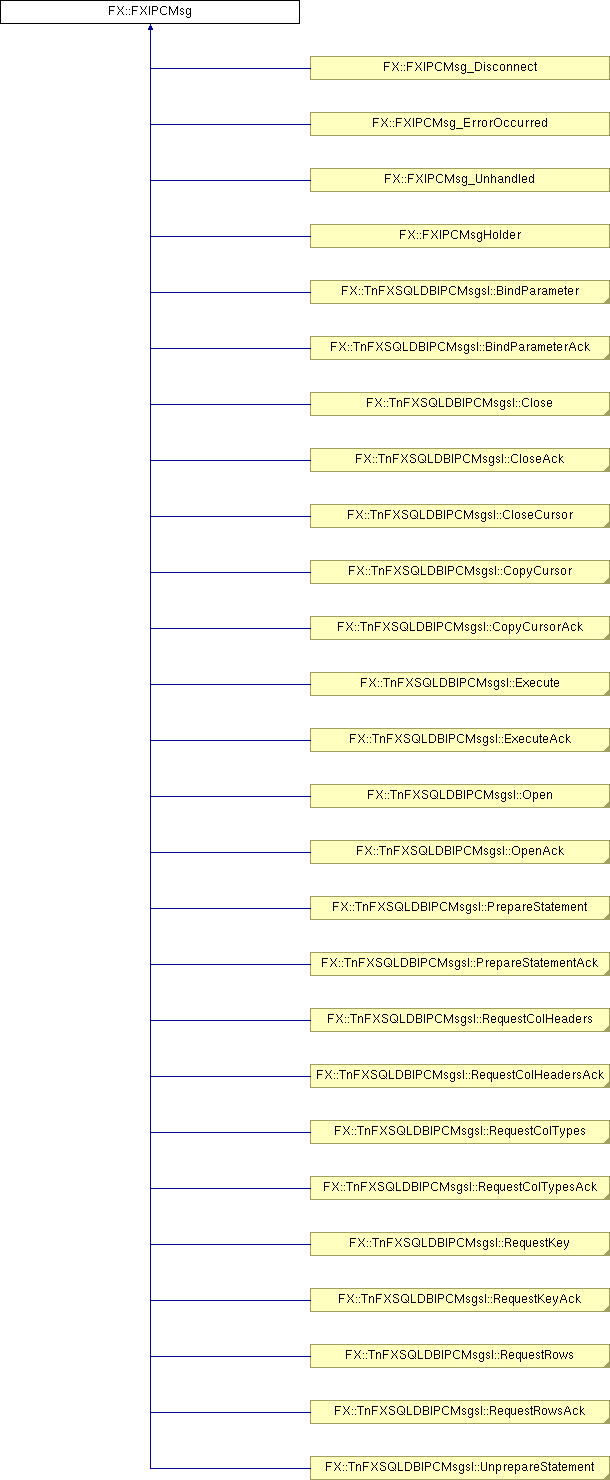

Inheritance diagram for FX::FXIPCMsg:

List of all members.

---

Detailed Description

A base IPC message.

Some fields are marked optional - this means they are set externally to FXIPCMsg eg; by FX::FXIPCChannel which sets them all. You must define

void   endianise(FXStream &s) const;
void deendianise(FXStream &s);

... in your subclasses of FXIPCMsg, the first serialising your message's contents to stream s and the latter unserialising them. They aren't virtual because (a) to avoid virtual table overheads (b) endianise() is per-derived-type and so using a templated type extractor we can pass the endianise() method then and (c) per-derived-type deendianise() is registered with FX::FXIPCMsgRegistry. Therefore there is no useful reason to make them virtual.

All FXIPCMsg subclasses must provide a default constructor or else the chunk register code won't compile.

You can use this structure yourself - or more likely let FX::FXIPCChannel do it all for you. There is an optional routing field which isn't used unless you set it to something.

Definition at line 184 of file FXIPC.h.

Public Types
	FlagsWantAck
	FlagsGZipped
	FlagsHasRouting
	FlagsIsBigEndian
enum	Flags { FlagsWantAck, FlagsGZipped, FlagsHasRouting, FlagsIsBigEndian }
Public Member Functions
bool	operator== (const FXIPCMsg &o) const throw ()
bool	operator!= (const FXIPCMsg &o) const throw ()
int	headerLength () const throw ()
FXuint	length () const throw ()
FXuint	msgType () const throw ()
bool	hasAck () const throw ()
FXuint	msgId () const throw ()
void	setMsgId (FXuint id) throw ()
bool	wantsAck () const throw ()
bool	gzipped () const throw ()
void	setGZipped (bool v) throw ()
bool	hasRouting () const throw ()
FXuint	routing () const throw ()
void	setRouting (FXuint no) throw ()
bool	inBigEndian () const throw ()
FXuchar *	originalData () const throw ()
void	write (FXStream &s) const
void	read (FXStream &s)
Static Public Attributes
static const FXuint	minHeaderLength
static const FXuint	maxHeaderLength
Protected Member Functions
	FXIPCMsg (FXuint _type, FXuchar _msgrev=0)
	FXIPCMsg (FXuint _type, FXuint _id, FXuchar _msgrev=0)
	FXIPCMsg (const FXIPCMsg &o, FXuint _type=0)
	~FXIPCMsg ()
Friends
class	FXIPCChannel
class	FXIPCChannelIndirector

---

The documentation for this struct was generated from the following file:

• FXIPC.h

---
